Overview

The following guide explains the process of connecting to your Private Cloud (PvC) Management Network VPN. The connection is required to access your Management Control panel at https://pvc.eapps.com

Getting to your VPN URL
Create a User
Export Configuration
Install and Connect Using OpenVPN ClientL
- Windows
- Mac

Getting to your VPN URL

Log in to portal.eapps.com with your username and password
Go to My Cloud > Private Cloud
Click on the Private Cloud Service you want to manage
Scroll down to Hosting Information and here you will find a section with the VPN URL and the credentials, click Show to reveal the password

Create a User

Log in to the VPN URL using the credentials found in the previous steps

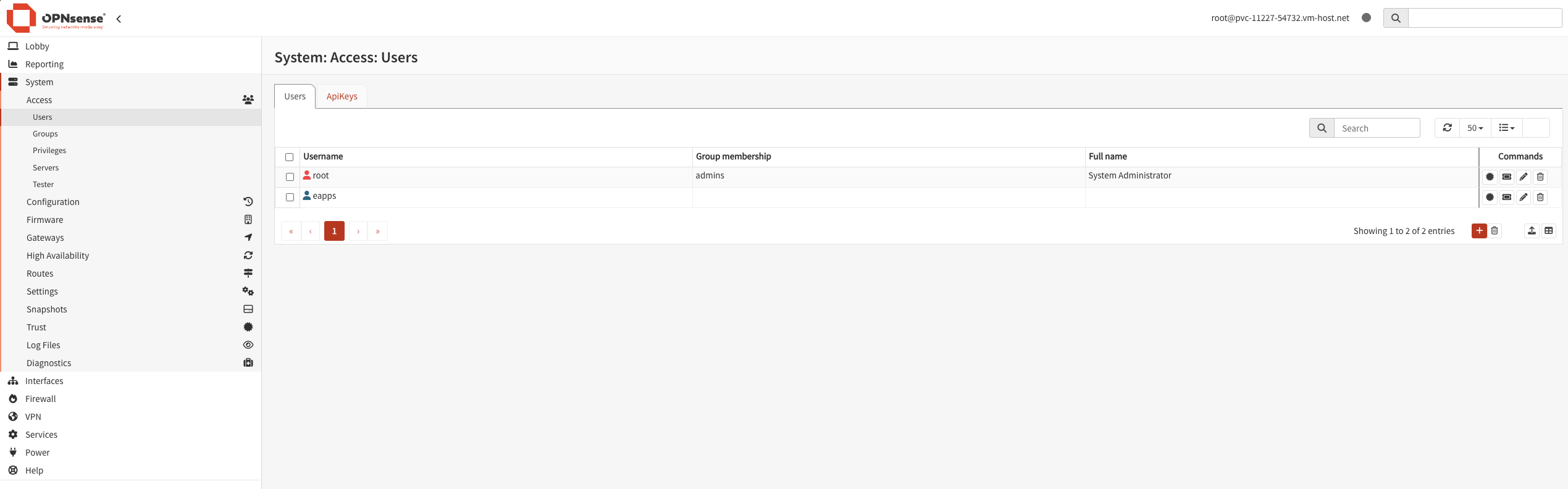

Navigate to System > Access > Users
Click the +Add button in the bottom right-hand corner

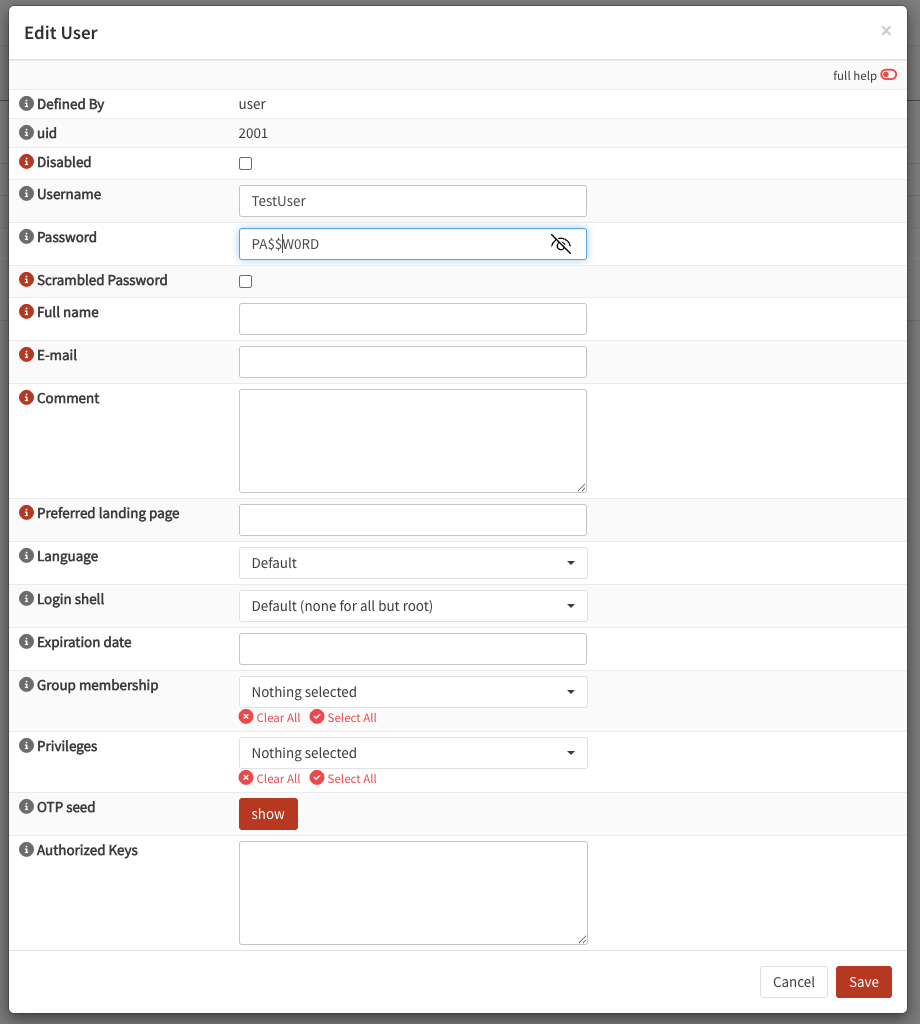

Fill in the Username and Password fields. You can also add the email, full name, and a comment if needed.
Click on the "Save" button.

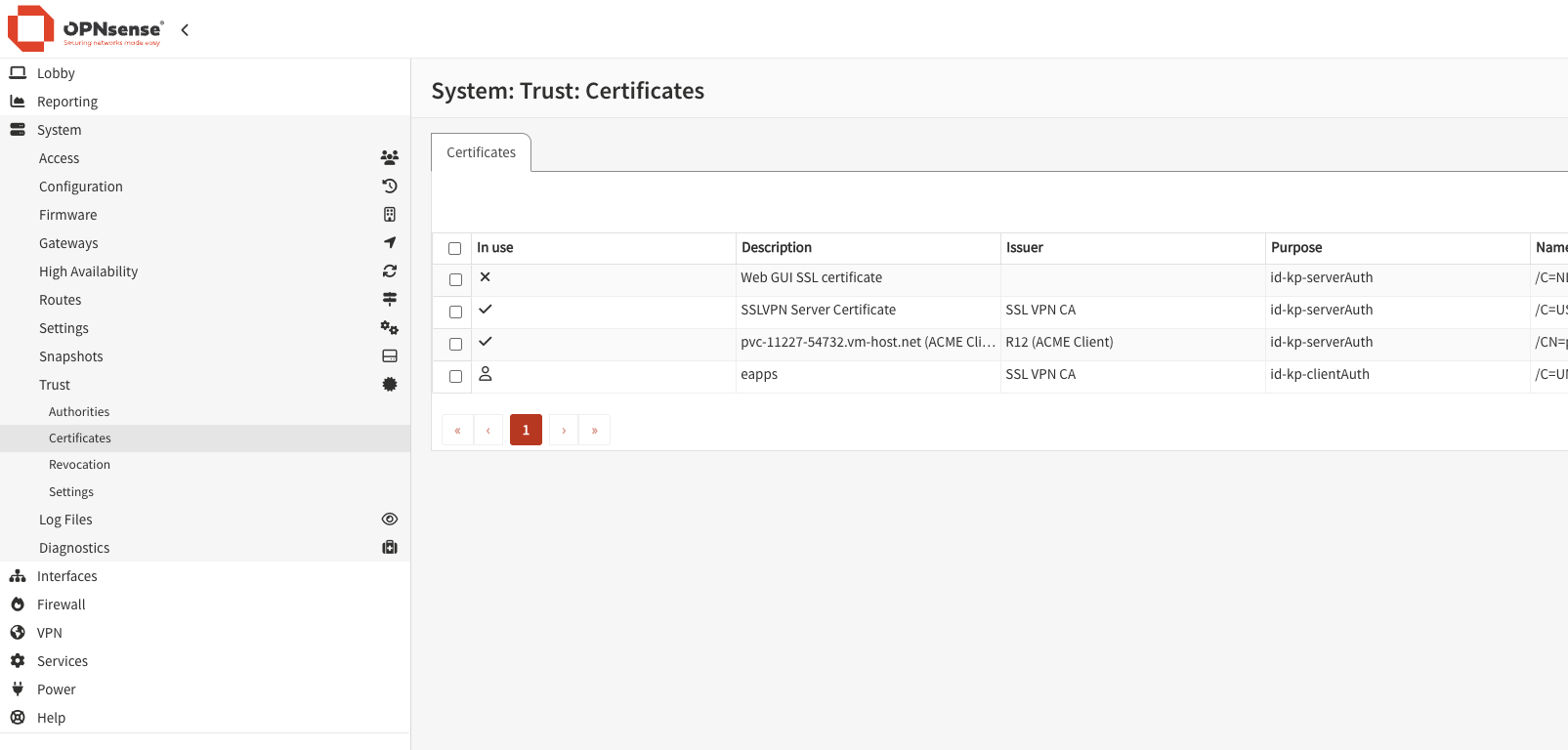

Navigate to System > Trust >> Certificates
Click the +Add button in the bottom right-hand corner

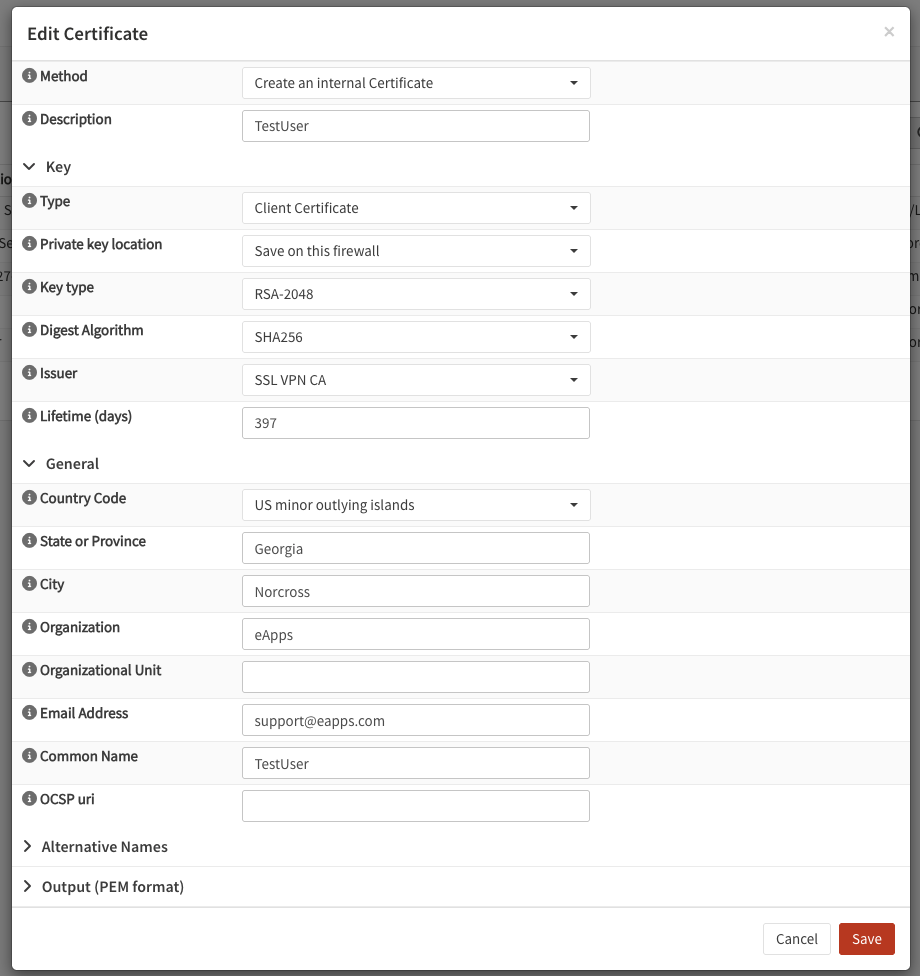

1. Select the "Create an internal Certificate" option on the "Method" field.
2. Type the username to fill the "Description" field.
3. Select "SSL VPN CA" as the "Issuer"
4. Fill the Address and organization fields under the "General" section.
5. Type the username as the "Common Name"
6. Leave the other fields as the default
Click Save

*You can create multiple users by following the same steps again. Having multiple users would be useful for team collaboration and tracking sessions to the VPN.

Export Configuration

Navigate to VPN > OpenVPN > Client Export

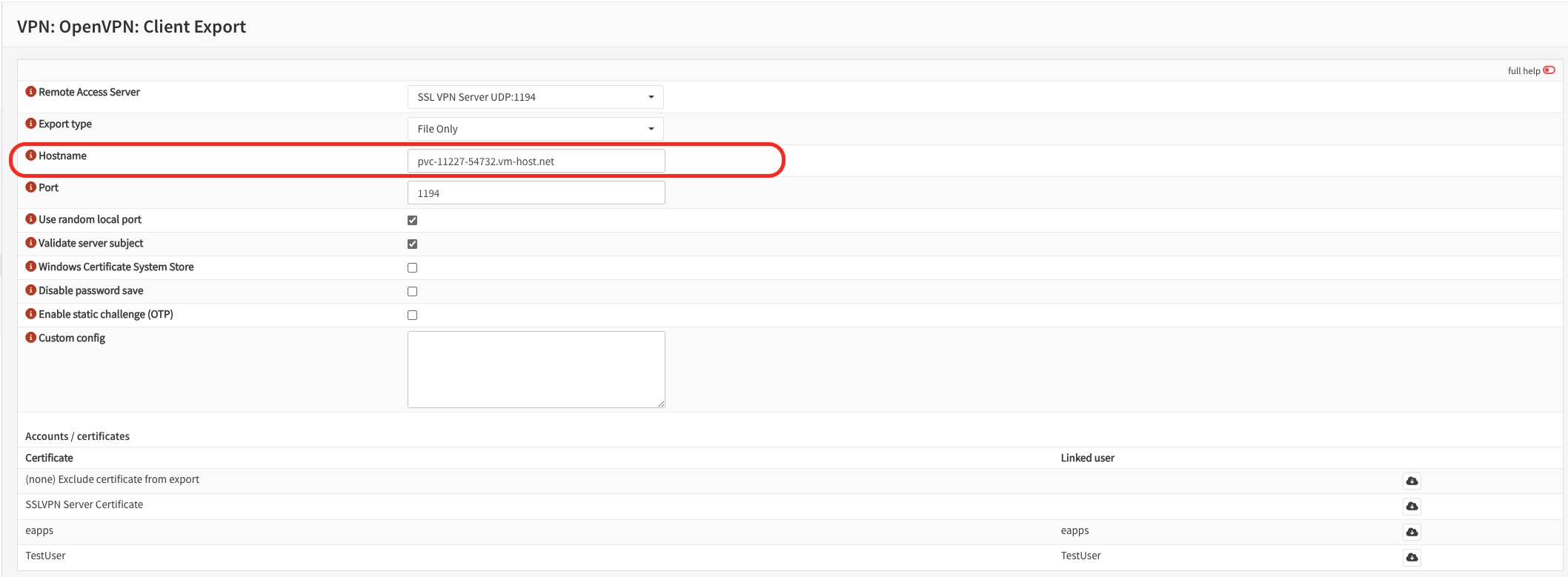

Make sure the Hostname is set to your VPN URL and Port is set to 1194
For Mac users Select File Only from the Export Type dropdown, For Windows users select Archive format

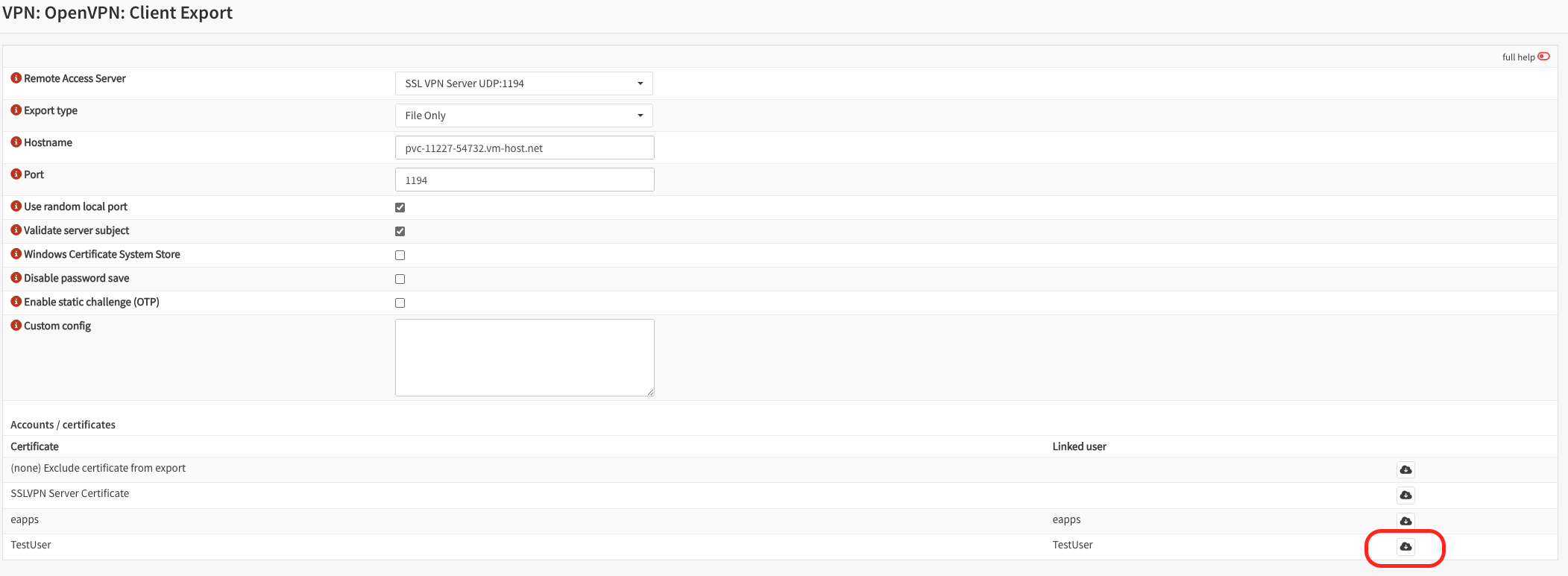

Click the Cloud Download icon to the right of the user you have created

Install and Connect Using OpenVPN Client

Windows

Download and install the OpenVPN client at https://openvpn.net/client/
Start the OpenVPN GUI by double-clicking the icon on your Desktop
Unzip the file you downloaded earlier. Note the file's location.

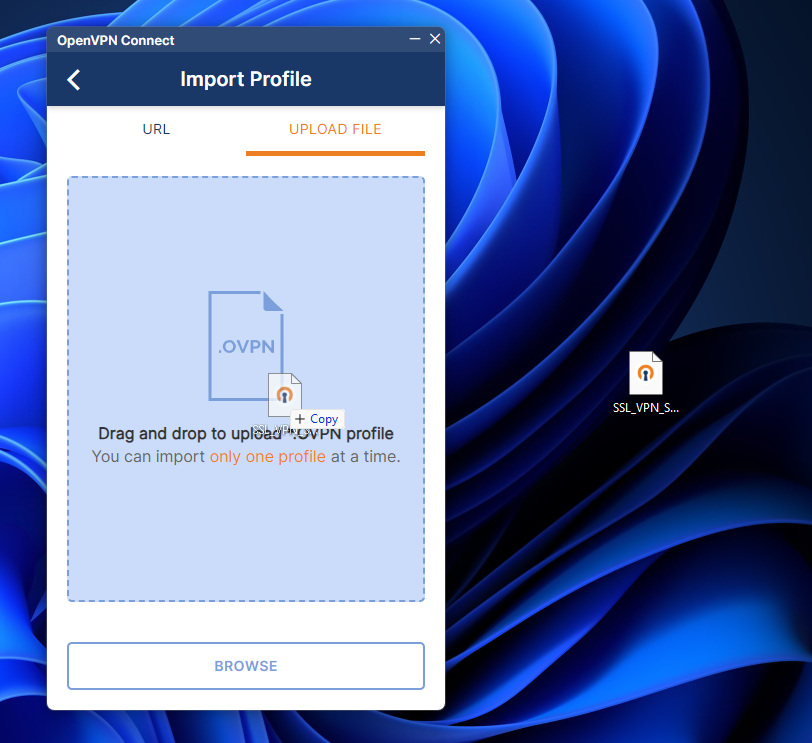

Drag and drop the OVPN file to the OpenVPN application

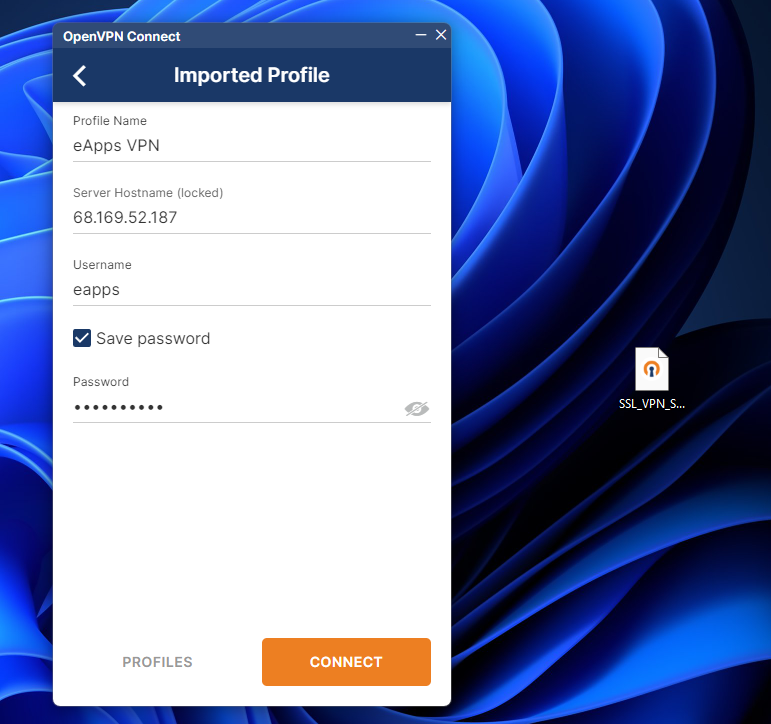

Type the Username and Password you created earlier, save the password, and click OK
Click on Connect

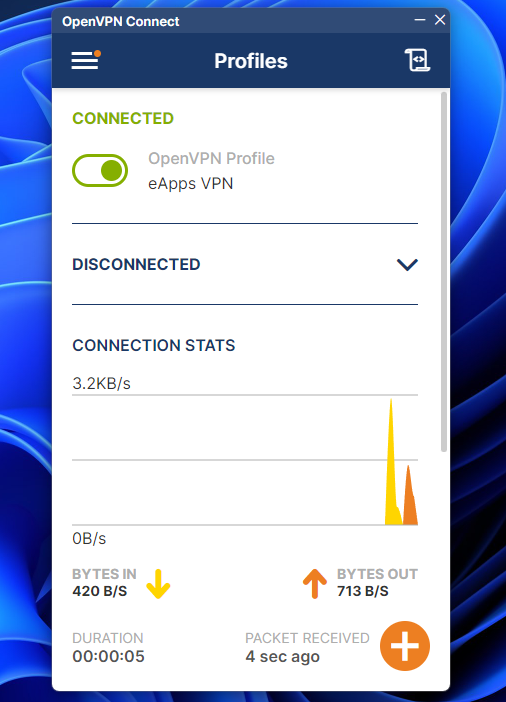

You should now be connected to your Private Cloud Management Network

Mac

Download and install the OpenVPN client at https://openvpn.net/client/
Start the OpenVPN Connect GUI app
Unzip the file you downloaded earlier. Note the file's location.

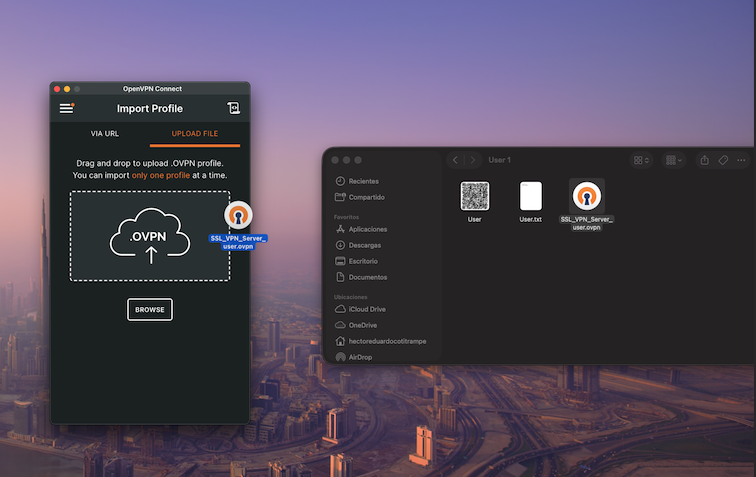

Drag and drop the OVPN file to the OpenVPN application

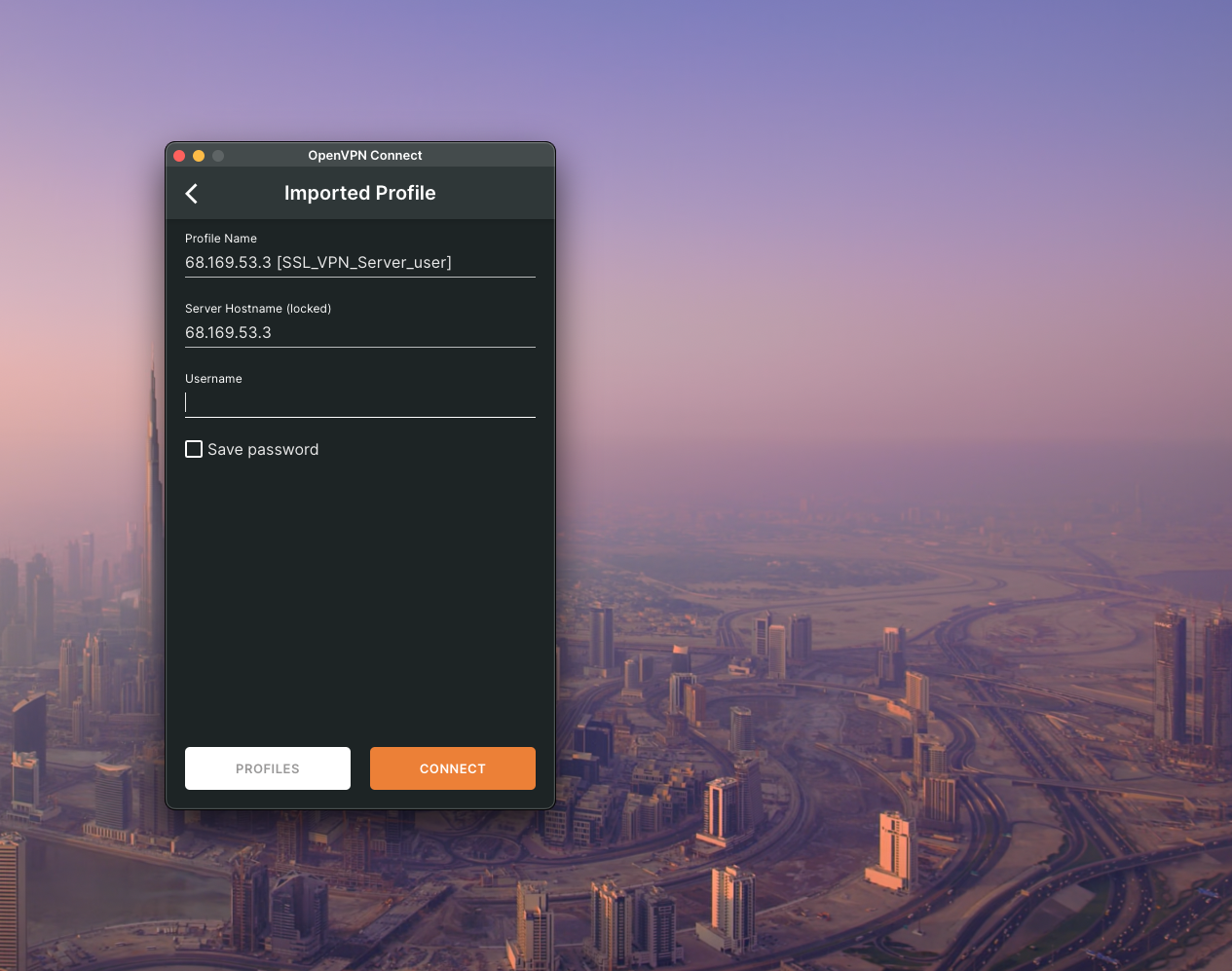

Type the Username and Password you created earlier, save the password, and click OK
Click on Connect
You should now be connected to your Private Cloud Management Network
